Specification
- Type: COB
- Voltage: 24V
- Watt per meter: 14.0 W/m
- LED density: 608 LED/m
- PCB width: 10 mm
- Min. cutting length: 27 mm
- Pin: 3
- IP rating: IP20
- Full roll: 50 m
Description
Welcome to FTS ELECTRICAL, where innovation illuminates your world! Introducing our state-of-the-art COB-CCT LED strip, meticulously crafted to redefine your lighting experience.
Key Features
-
COB Technology: Our Chip-on-Board (COB) technology ensures superior illumination by integrating multiple LED chips on a single module, providing powerful and efficient lighting.
-
CCT (Correlated Color Temperature): Experience lighting versatility! Our CCT-enabled LED strip allows you to seamlessly transition between warm and cool white tones, catering to diverse atmospheres and moods.
-
24V Operating Voltage: Designed for stability and efficiency, our LED strip operates at 24 volts, delivering consistent and reliable performance.
-
14W/m Power Consumption: Achieve the perfect balance between energy efficiency and luminosity with a modest power consumption of 14 watts per meter.
-
Slim Profile: With a sleek 10mm width, our strip offers a discreet and flexible lighting solution, effortlessly blending into any environment for a polished look.
-
608 LEDs/m: Illuminate with precision! Our strip boasts 608 LEDs per meter, ensuring uniform and brilliant light output for an immersive lighting experience.
-
High CRI (Ra>90): Elevate your space with true-to-life color representation. Our strip achieves a Color Rendering Index (CRI) exceeding 90, guaranteeing vivid and accurate colors.
Immerse yourself in the world of FTS ELECTRICAL, where our COB-CCT LED strip combines cutting-edge technology with stunning design. Illuminate your surroundings with sophistication and precision.
| Cutting Unit | 25mm |
| Input Voltage | DC24V |
| Input Current | 60mA |
| Maximum Power | 14W |
| Bending Diameter | 90 degree |
| PCB Width | 10mm |
| CRI | >90Ra |
| SDCM | <3 steps |
| Energy Efficiency Level | A++ |
| LED Type | COB |
| Lumen per LED | / |
| LED Quantity | 608L |
| Adhesive Type | 3M |
| Warrenty | 2 years |
| IP Rating | IP20 |

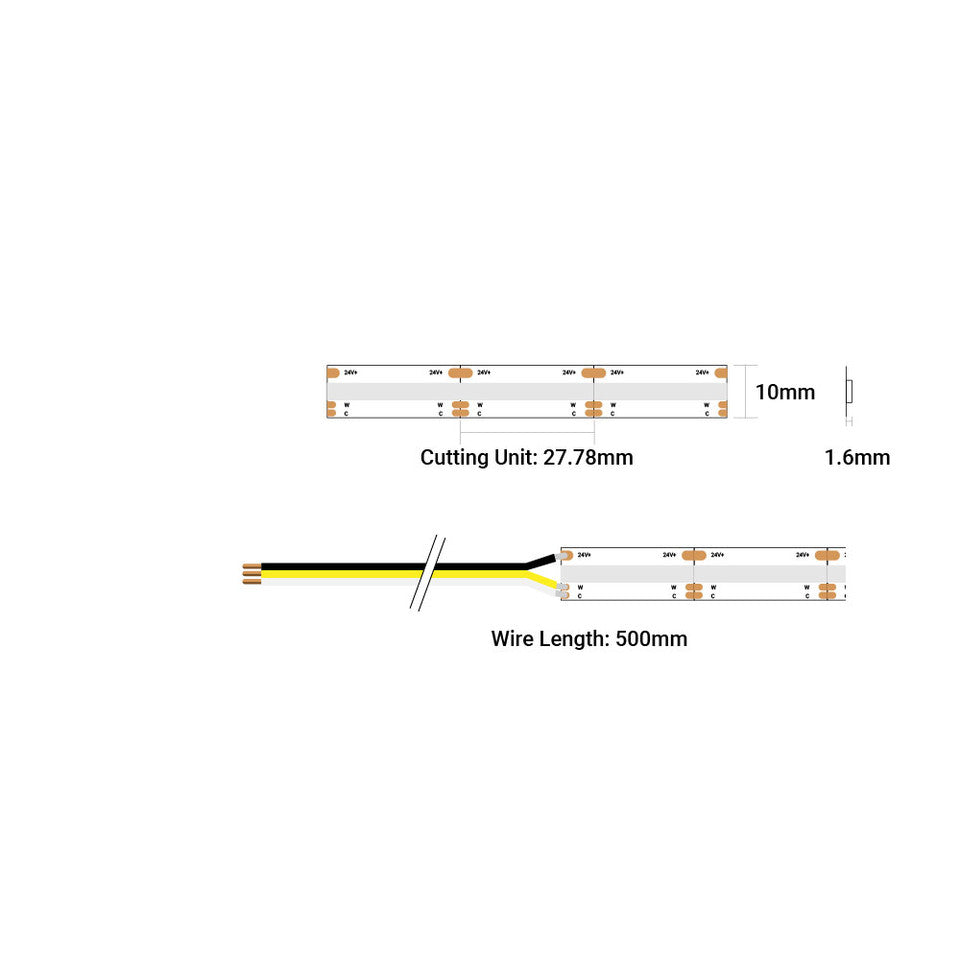

Profile Drawing
