Specification
- Type: COB
- Voltage: 24V
- Watt per meter: 23.0 W/m
- LED density: 840 LED/m
- PCB width: 12 mm
- Min. cutting length: 42 mm
- Pin: 6
- IP rating: IP20
- Full roll: 25 m
Description
Welcome to FTS Electrical – Transforming Spaces with RGB CCT Brilliance!

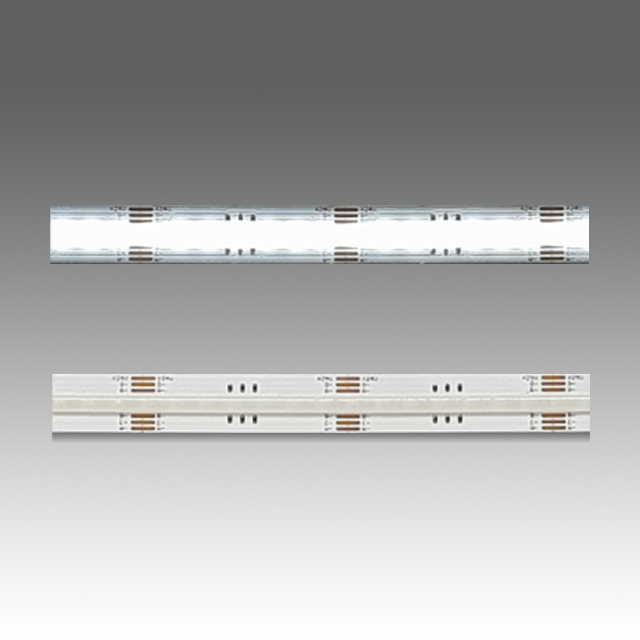

Introducing Our Exceptional COB RGBCCT LED Strip: COB-RGBCCT-DC24V-20W/m-12mm-840L-Ra>90. Immerse Yourself in Limitless Colors and Tunable White Light Brilliance:
-
Dynamic RGBCCT Spectrum: Experience a full spectrum of colors and tunable white light, offering unparalleled versatility in lighting design.
-
Efficiency Perfected: Operating at 24V DC with a power consumption of 20W/m, achieve optimal brightness while prioritizing energy efficiency.
-
Sleek and Versatile: With a refined 12mm width, our COB RGBCCT LED strip seamlessly integrates into various applications, combining style and adaptability.
-
Color Precision: A Color Rendering Index (CRI) exceeding 90 ensures precise and lifelike color representation, enhancing visual experiences.
Illuminate your spaces with FTS Electrical – Where COB Excellence Meets Versatile Brilliance!
| Cutting Unit | 32mm |
| Input Voltage | DC24V |
| Input Current | 60mA |
| Maximum Power | 20W |
| Bending Diameter | 90 degree |
| PCB Width | 12mm |
| CRI | >90Ra |
| SDCM | <3 steps |
| Energy Efficiency Level | A++ |
| LED Type | COB |
| Lumen per LED | 1200lm/m |
| LED Quantity | 840L |
| Adhesive Type | 3M |
| Warrenty | 3 years |
| IP Rating | IP20 |

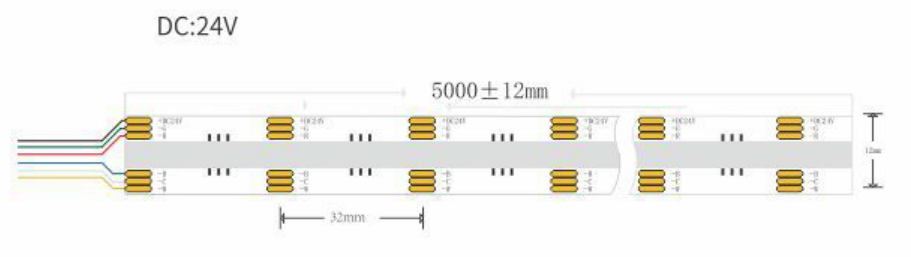

Profile Drawing
